Installation

How is it installed and what requirements do I need?

Installing Radical Virtual is cost effective and super easy!

THE GYM NEEDS

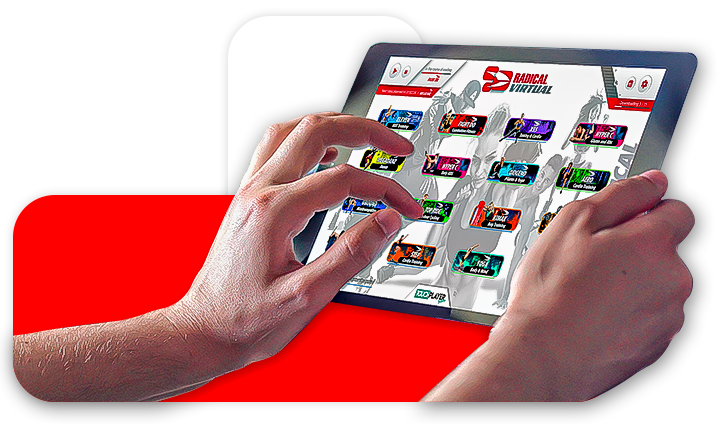

Touch screen laptop, windows OS – Although it is possible to install on a desktop PC, using a mouse to operate the system. However, we recommend the touch screen if using for On-demand

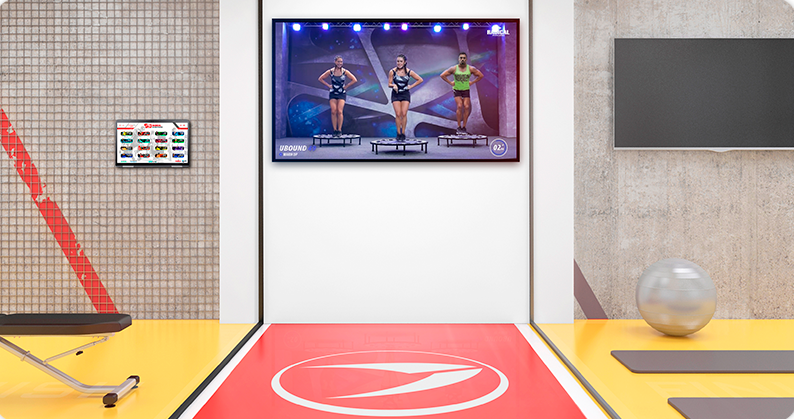

A great way to offer accessibility is for gyms to use a display stand fixed to the wall, so that Users can easily access the touchscreen to select a class.

ON DEMAND SYSTEM

A great way to offer accessibility is for gyms to use a display stand fixed to the wall, so that Users can easily access the touchscreen to select a class.

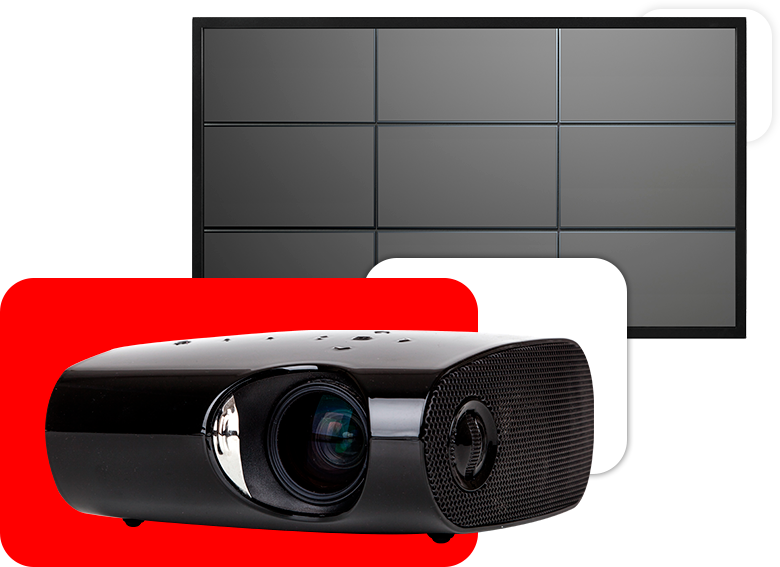

Projector or Large TV screen (65 inches or more) – The bigger the better to create a virtual experience.

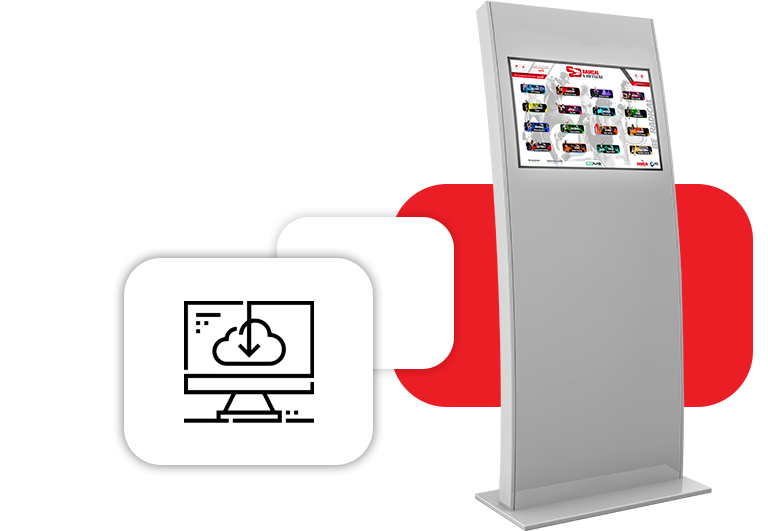

Optionally the gym can use the Radical Virtual Totem Display

Software installation is simple
• We will provide a link to download the Radical Virtual software.
• After installation, download the classes.
• Once the classes are downloaded and allocated on the laptop the system is ready to use!

Software

1.INITIAL VIDEO DOWNLOAD

Video download time oscillates depending on the internet connection. We recommend download the videos connected to the internet with a network wire, for a faster download.

The initial video download (about 500 videos), with a download speed of 50 Mbps, will take approximately 36 to 48 hours. We recommend to use a download speed of 100 Mbps, to get a fast download.

2. QUARTERLY VIDEO DOWNLOAD UPDATE

Every quarter the system will delete about 50 old videos and download the new ones (50 videos).

In Setting you are going to be able to select if the videos start downloading automatically or if you want to set the date and time to download them.

We recommend not to do it automatically. Every three months you will set what day and what time you want to download them so that the system doesn’t slow down while the videos are being downloaded. The quarterly update will take 12 hours maximum.

Hardware requirements

Computer requirements for exclusive Radical Virtual use. Minimum recommended configuration:

Dedicated 2 in 1 Convertible Touchscreen laptop.
i3 processor (7th generation) or equivalent.
14 inches to 17 inches screen size. / The bigger the better for On Demand use.
Hard disk option 1: 1 Terabyte of hard disk space / Compulsory for Full plan.
Hard disk option 2: 500 Gigabyte of hard disk space / Only for Starter, Spot and Ride plan.
8 GB - RAM.
Audio output Stereo (3,5mm).
Video output (HDMI) and HIGH SPEED internet connection.
Not compulsory: 16 GB Intel Optane Memory.

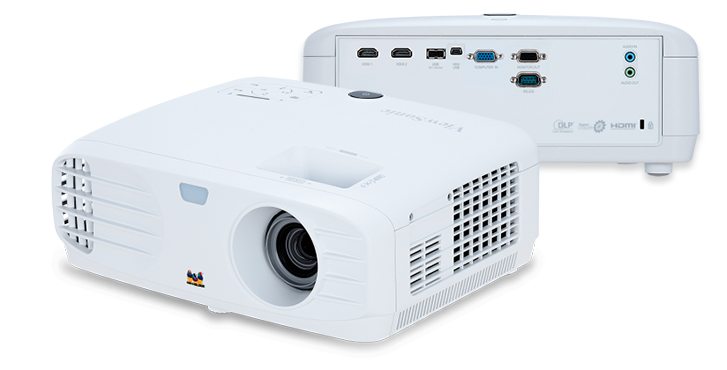

Option 1: Recommended to project from 120 inches to 150 inches:

Native resolution: 1920 x 1080 (Full HD)

Brightness: 3500 ANSI lumens

Contrast ratio: 12.000:1

Light source: Lamp

Dimensional ratio: 16:9

Recommended brand: ViewSonic PX700HD Projector

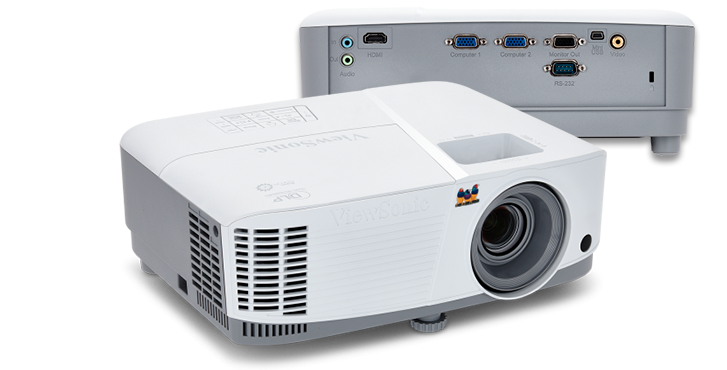

Option 2: Recommended to project from up to from 80 inches to 100 inches:

Native resolution: 1280 x 720 (HD, WXGA) (Full HD)

Brightness: 3600 ANSI lumens

Contrast ratio: 22.000:1

Light source: Lamp

Dimensional ratio: 16:9

Recommended brand: ViewSonic PA503W Projector
